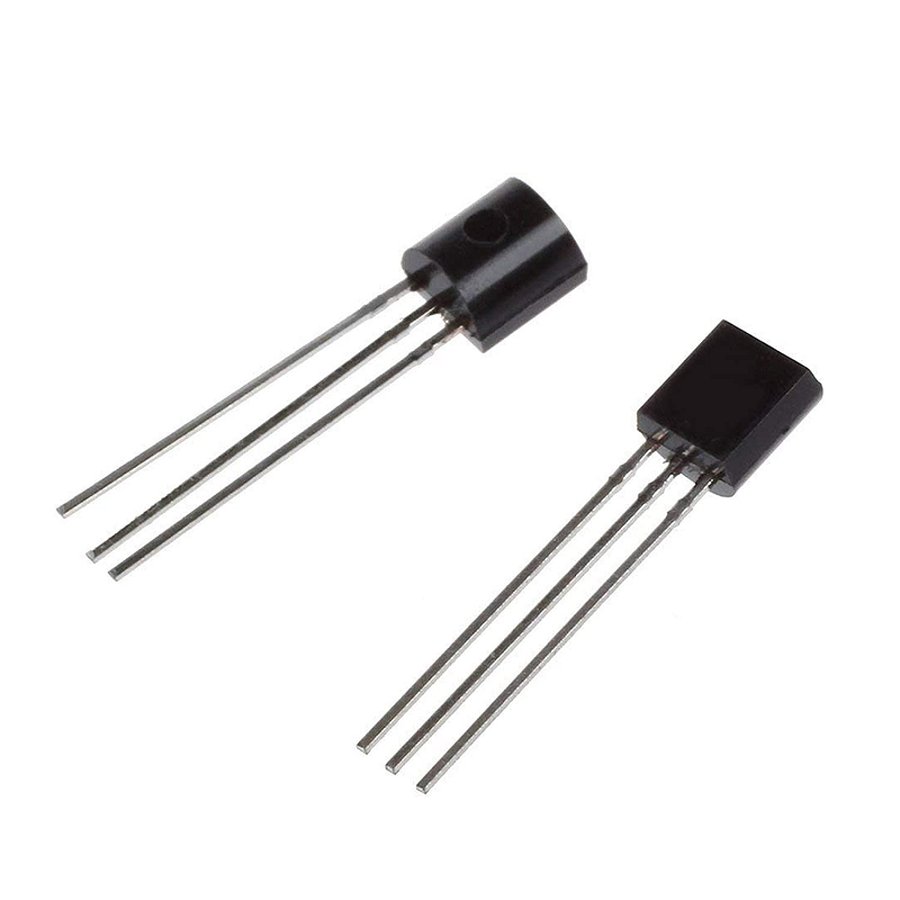

UM66T19LK Simple Melody Generator-TO-92 Package
No reviews yet
₹21.86
Inclusive of 0.00% GST
UM66T19LK Simple Melody Generator-TO-92 Package
In Stock
Specifications
| Manufacturer Part No: | UM66T19LK-T92-K |
|---|---|
| Manufacturer: | UTC (Unisonic Tech) |
| DC Supply Voltage: | 1.5V ~ 4.5V |
| Operating Current: | 60μA |
| O/P Drive Current: | 400 ~ 600μA |
| O/P Sink Current: | 350 ~ 450μA |
| Frequency Deviation: | -12% |
| Frequency Stability: | 10% |
| Operating Temperature Range: | -10°C ~ +60°C |
| Mounting Style: | Through Hole |
| Package/Case: | TO-92-3 |
Description
The UTC UM66TXXL series are CMOS LSI designed for use in doorbell, telephone, and toy applications. It is an on-chip ROM programmed for musical performance. Produced by CMOS technology, the device results in very low power consumption. Since the UTC UM66TXXL series includes oscillation circuits a compact melody module can be constructed with only a few additional components. Tags, 1455, BT66, FT66 Musical IC,R-1455, Siren IC, Sound Generator, UM3561, UM3561 Buy India, UM66, UM66T, UM66T11L, UM66T19LK-T92-K.
