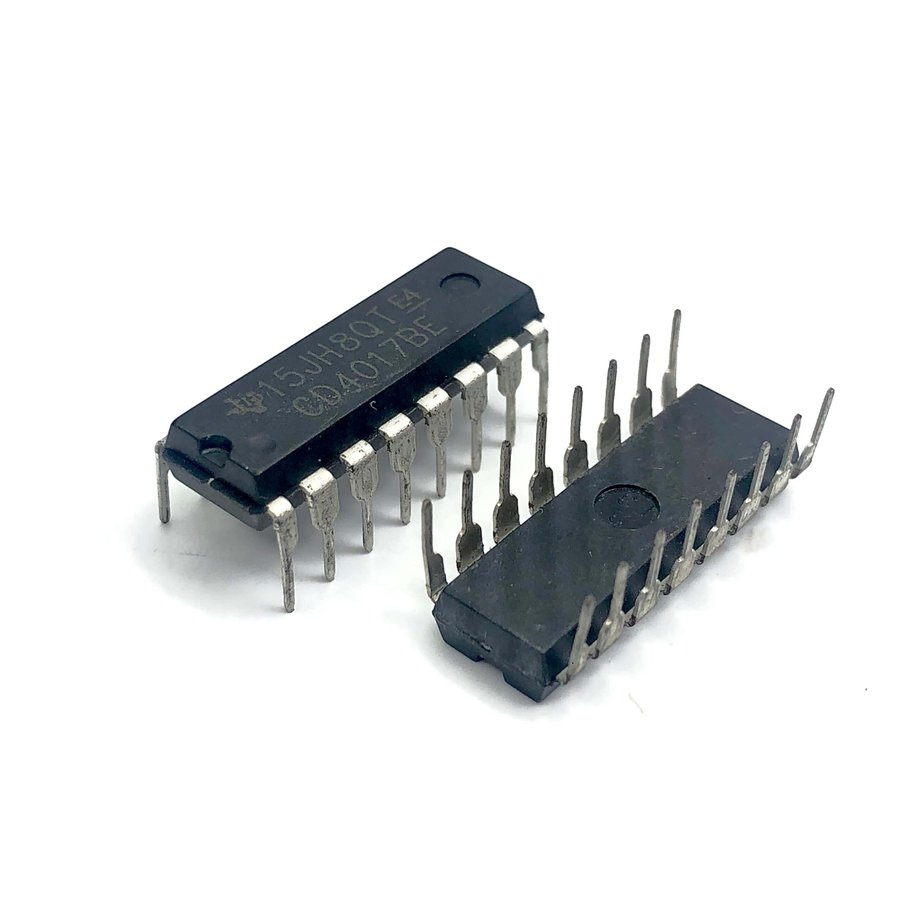

CD4017 Decade Counter IC DIP-16 Package
No reviews yet
CD4017 Decade Counter IC DIP-16 Package
In Stock
Specifications
| Logic Family: | CD4000 |
|---|---|
| Series: | CD4017B |
| Function: | Counter |
| Product Category: | Counter IC |
| Counter Type: | Decade |
| Number of Bits: | 10 bit |
| Counting Method: | Synchronous |
| Counting Sequence: | Up |
| Operating Supply Voltage: | 3 ~ 18V |
| Operating Temperature Range: | -55 ~ +125°C |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP-16 |
| Weight: | 1gm |
Description
The IC CD4017 is used for counting applications, it has the capability to turn on 10 outputs sequentially in a pre-defined time and reset the count or hold it when required. It also has the capability to indicate the status of counting using the Carry pin. This is commonly used for Led chasers and other logical output projects, so if you are looking for a sequential decoded counting IC that can count up to 10 then this IC will be your right choice. The CD4017B and CD4022B types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic package (E suffix), 16-lead small-outline packages (NSR suffix), and 16-lead thin shrink small-outline packages (PW and PWR suffixes). The CD4017B types also are supplied in 16-lead small-outline packages (M and M96 suffixes).
This product is known as CD40175BEE4, CD40175BPWR, CD40174BEE4, CD4017BPWRE4, CD4017BM, CD40175BE, CD4017BE, CD4017BM96G4, CD4017BM96, CD4017BNSR, CD4017BMG4, CD40174BE, CD4017BEE4, CD40175BM96, CD40174BNSR, CD4017BPW, CD40175BM, CD4017, CD4017 Decade Counter, CD4017BE Decade Counter.
