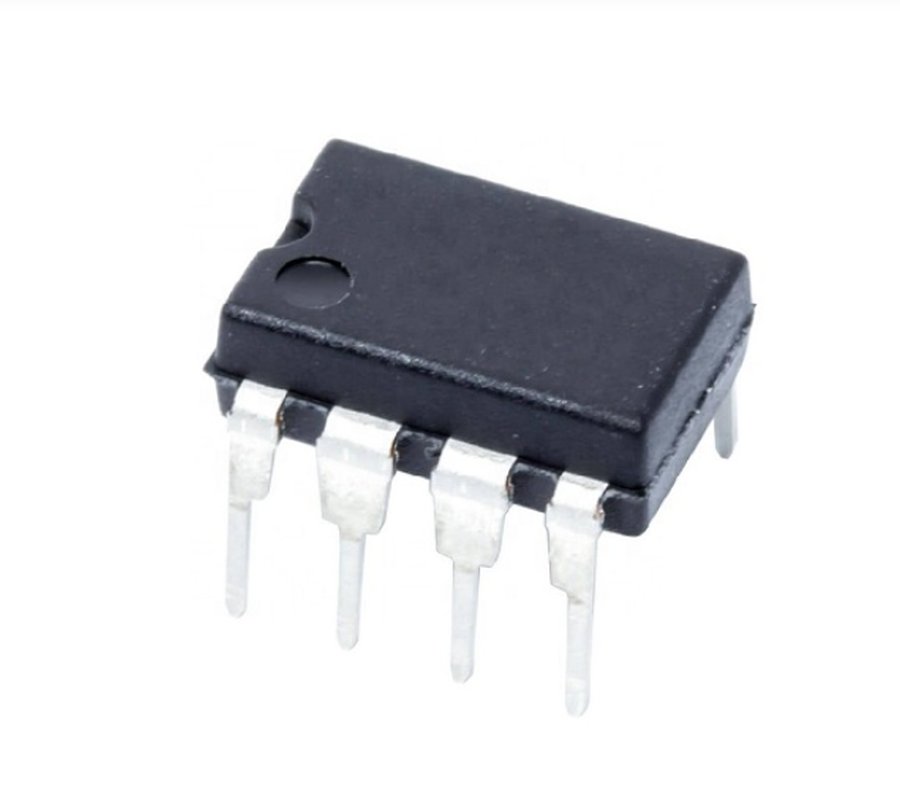

NE555P Precision Timer IC- DIP-8 Package
No reviews yet
NE555P Precision Timer IC- DIP-8 Package
In Stock
Specifications
| Manufacturer: | Texas Instruments |
|---|---|
| Series: | NE555 |
| Number of Internal Timers: | 1 Timer |
| Supply Voltage – Max: | 16 V |
| Supply Voltage – Min: | 4.5 V |
| Minimum Operating Temperature: | 0°C |
| Maximum Operating Temperature: | + 70°C |
| High-Level Output Current: | 200 mA |
| Operating Supply Current: | 2 mA |
| Package/Case: DIP- | 8 |
Description
The LM555 is a highly stable device for generating accurate time delays or oscillation. Additional terminals are provided for triggering or resetting if desired. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and duty cycle are accurately controlled with two external resistors and one capacitor. The circuit may be triggered and reset on falling waveforms, and the output circuit can source or sink up to 200 mA or drive TTL circuits. This product is known as NE555P, 555 IC, NE555 Timer IC, NE555P Timer IC.
