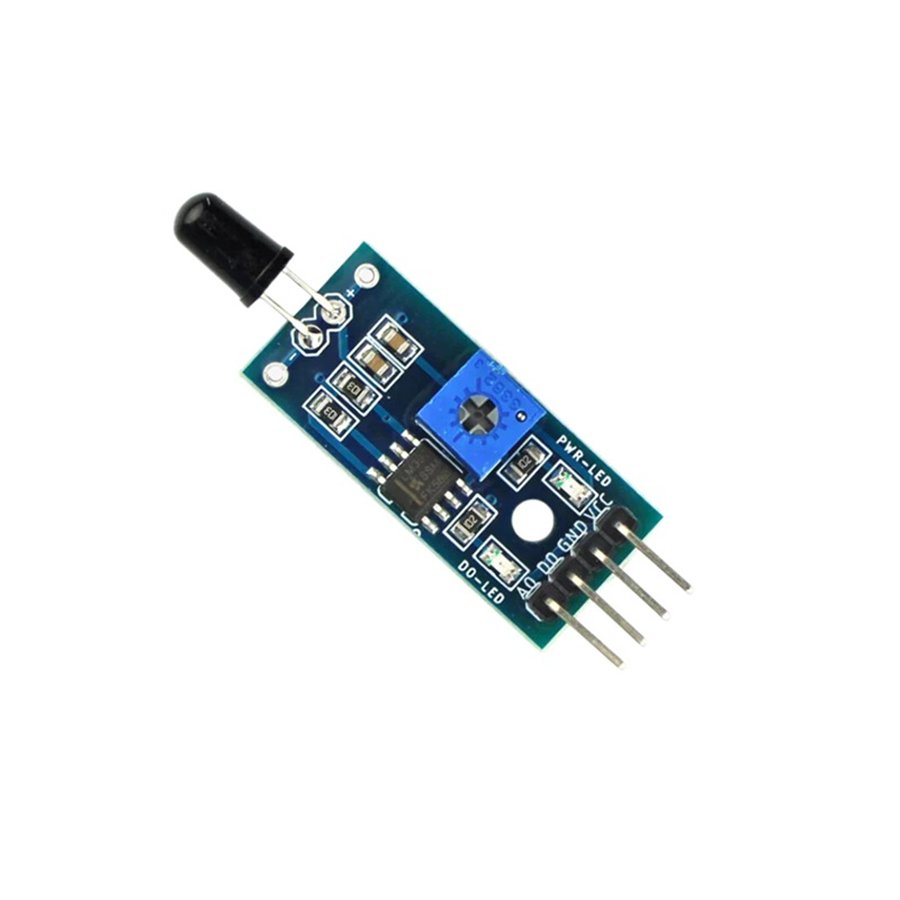

Fire/Flame Sensor Module 1 Metre Range
No reviews yet
Fire/Flame Sensor Module 1 Metre Range
In Stock
Specifications
| Output Channel: | 1 |
|---|---|
| Operating Voltage: | 3.3 ~ 5V |
| Indicator light: | a green one for the switch, a red one for power. |
| Built-in a potentiometer | for sensitivity control. |
| Onboard signal output indication, output effective signal is high, | at the same time the indicator lights up, the output signal can directly connect to microcontroller IO. |
| Can detect fire or wavelength in | 760 ~ 1100 nm nano within the scope of the light source. |
| The detection angle is about 60 degrees, | and the flame spectrum is especially sensitive. |
| The flame of the most sensitive sensors flame, | the regular light is also a response, generally used for fire alarm purposes. |
| Mounting Hole: | 3mm |
| Length: | 32mm |
| Width: | 14mm |
| Weight: | 3mm |
Description
This tiny Flame sensor infrared receiver module ignition source detection module is Arduino compatible and can be used to detect flame or wavelength of the light source within 760nm~1100nm. It is also useful for Lighter flame detection at a distance of 80cm. The greater the flame, the farther the test distance. It has a Detect angle of 60° and is very sensitive to flame spectrum. It produces the one-channel output signal at the D0 terminal for further processing like an alarm system or any switching system. The sensitivity is adjustable with the help of a blue potentiometer given on the board.
