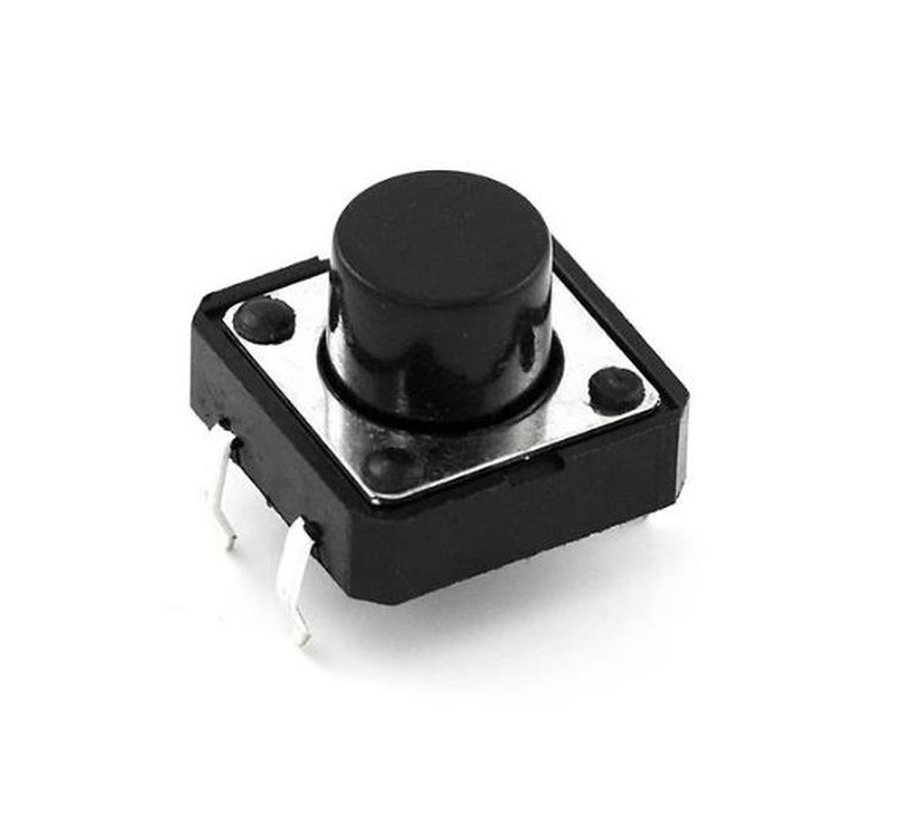

Push Button-Tactile/Micro Switch-12X12X7mm-4 Pin
No reviews yet
Push Button-Tactile/Micro Switch-12X12X7mm-4 Pin
In Stock
Specifications
| Body Material: | Plastic |
|---|---|
| Switch Type: | Push Button |
| Pin Count: | 4 Pin |
| Operating Voltage: | 12V |
| Operating Current: | 50mA |
| Tactile | /Microswitch |
| Shaft Shape: | Round |
| Contact Material: | Brass |
| Contact Resistance: | 50mΩ |
| Insulation Resistance: | 100MΩ |
| Operating Temperature Range: | -30°C to +70°C |
| Operation Force: | 180gf |
| Electrical Life: | 100,000+Cycles |
| Push Button Size: | Length: 12mm |
| Width: | 12mm |
| Height: | 7mm |
| Weight: | 1.5gm |
| Notch: | 3.7mm |
Description
12x12x7 mm Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. Featured by Sharvi Electronics This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
