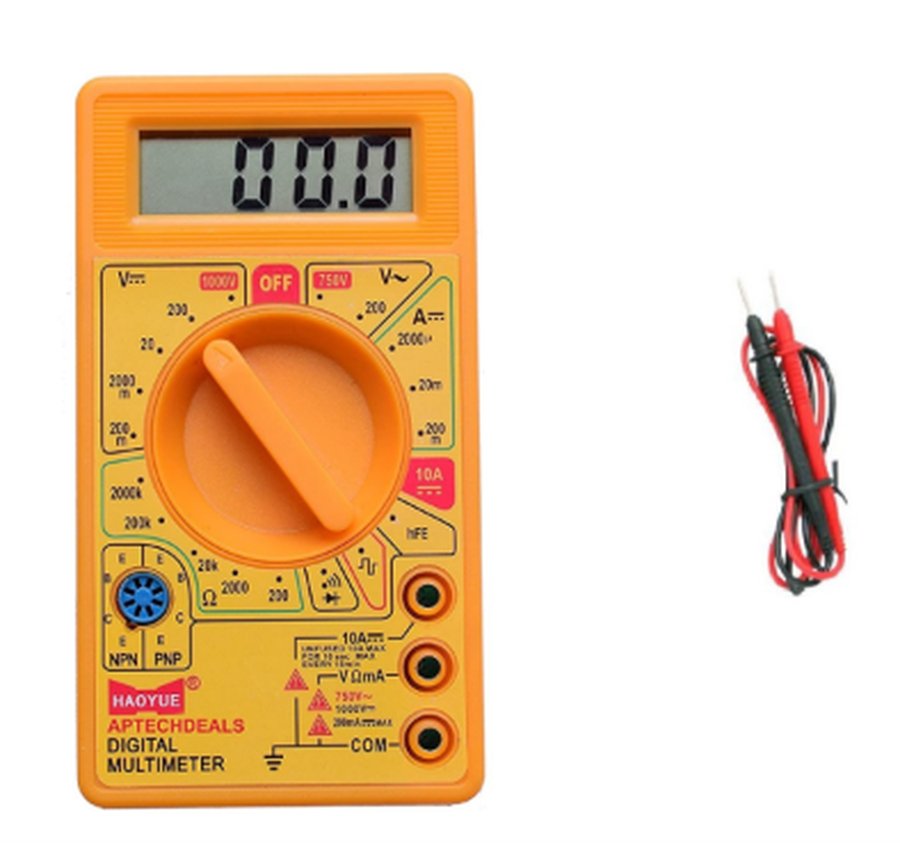

Haoyue DT830D Digital Multimeter With Lcd Display
No reviews yet
Haoyue DT830D Digital Multimeter With Lcd Display Voltage Rating: 1000Vdc/750Vac Rms
In Stock
Specifications
| Type | Digital Multimeter |
|---|---|
| Display | 3.5-Digit LCD Display |
| Size | 21 × 15 × 5 cm |
| Voltage Rating | 1000 V DC / 750 V AC RMS |
| Input Impedance | 1 MΩ |
| Power Supply | 9 V Battery |
| DC Voltage Ranges | 200 mV, 2000 mV, 20 V, 200 V, 1000 V |
| DC Current Ranges | 200 µA, 2000 µA, 20 mA, 200 mA, 10 A |
| AC Voltage Ranges | 200 V, 750 V |
| Resistance Ranges | 200 Ω, 2000 Ω, 20 kΩ, 200 kΩ, 2000 kΩ |
| Polarity Detection | Automatic DC Polarity |
| Range Selection | Auto-Ranging |
| Display Type | LCD |
| Application | Electrical Testing, Electronics Projects, Troubleshooting |
Description
830 series multimeters are pocket-sized 3 1/2-digit digital multimeters for measuring DC and AC Voltage, DC Current, Resistance, and Testing Diode. Some models also provide transistor test function, signal output, or performing continuity test. Overload protection and low battery indication are provided. The following table shows the functions of the series multimeters. This Product is known as Digital Multimeter, Multimeter, DMM, Haoyue DT830D, DT830D Multimeter, Multimeter Haoyue DT830D, Digital Multimeter Haoyue DT830D
FUNCTION AND RANGE SWITCH
1. This switch is used to select the functions and desired ranges as well as to turn ON/OFF the meter. To extend the life of the battery, the switch should be in the “OFF” position when the meter is not in use. Plug-in connector for red (Positive) test lead for current ( between 200mA and 10A ) measurement. There is no fuse for the “10A” jack. To use safely, each measurement can not last for more than 10 seconds and the interval between each measurement must be
more than 15 minutes.
2. DISPLAY
3 1/2 digits, LCD(12mm)
3. “COM” JACK Plug-in connector for black (negative) test lead.
4. JACK Plug-in connector for red (positive) test lead for all voltage, resistance, and current ( up to 200mA ) measurements.
5. “10A” JACK
6. LIGHT SWITCH ( only for DT830BL ) Switch for ” torchlight ” and ” backlight “.
