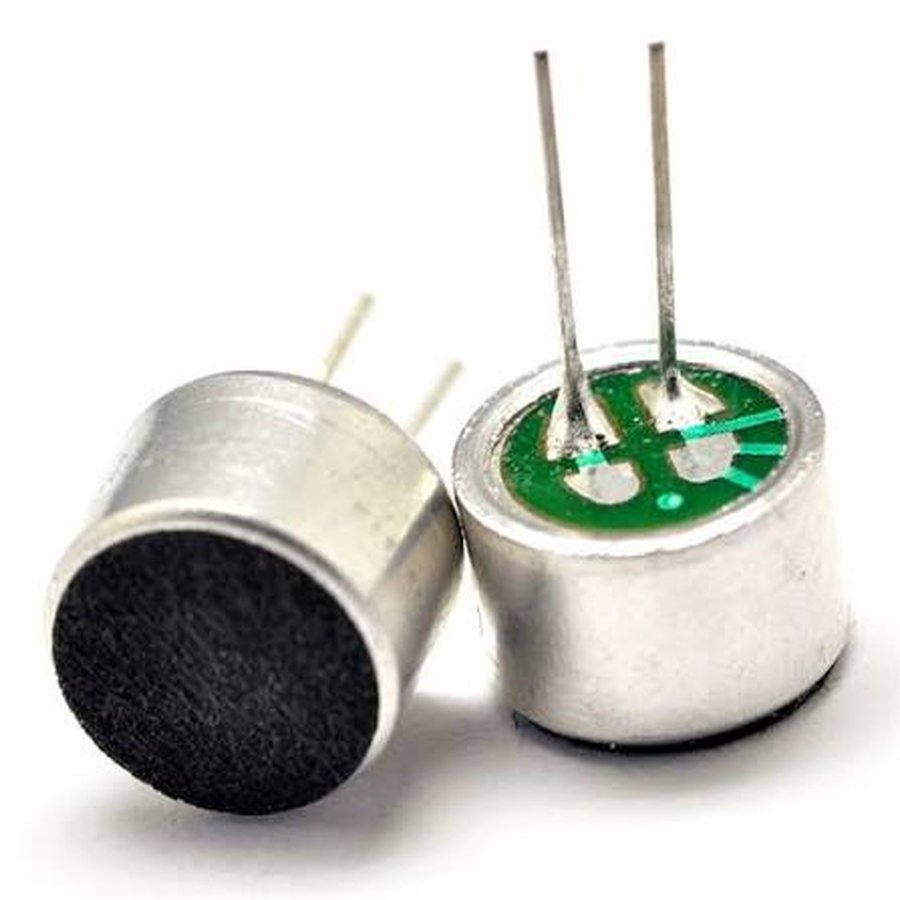

5VDC Electret Condensor Microphone With 2Pin -9.8X6.8mm
No reviews yet
5VDC Electret Condensor Microphone With 2Pin -9.8X6.8mm
In Stock
Specifications
| Product Names: | Electret Condensor Microphone |
|---|---|
| Directivity: | Omni Directional |
| Sensitivity: | -60dB ±3dB |
| Standard Voltage Rating: | 4.5VDC |
| Current Consumption: | 0.5mA |
| Input Sound Pressure Leve: | 120dB |
| Signal To Noise Ration: | >40 dBA |
| Frequency Range: | 50Hz ~ 12kHz |
| Operating Voltage Range: | 1V ~ 10VDC |
| Operating Temperature Range: | -30°C ~ +70°C |
| Mounting Type: | 2Pin Through Hole |
| Case Material: | Aluminium |
| Out Diameter: | 9.8mm |
| Height: | 6.8mm |
| Weight: | 2 gm |
Description
Electret Condenser Microphone (50Hz to 16kHz, 5VDC, 9.5 x 6.5mm) is a compact, high-sensitivity electret condenser microphone designed for clear and accurate audio capture across a wide frequency range of 50Hz to 16,000Hz. Operating at 5V DC, this microphone is ideal for low-power applications in both consumer electronics and embedded systems. With its small form factor of just 9.5mm x 6.5mm, is perfect for space-constrained designs. It delivers excellent performance in sound detection, voice recognition, and audio recording systems. Whether used in DIY electronics, smart devices, or professional audio equipment, the provides reliable, high-quality sound input. Sharvielectronics Tags, Electret Microphone, Condenser Microphone, Audio Sensor, Microphone for Arduino, Voice Recognition Microphone, Small Microphone for Projects, DIY Audio Projects, Sound Detection Module, Microphone for Smart Devices, Low Power Microphone, High Sensitivity Microphone, Microphone for Electronics, Compact Microphone, Audio Sensing Device, 5VDC Microphone, Electret Condenser Audio Sensor, Microphone for Security Systems, Tiny Microphone for Gadgets, Sound Activated Microphone, Microphone for Robotics, High Frequency Microphone.
